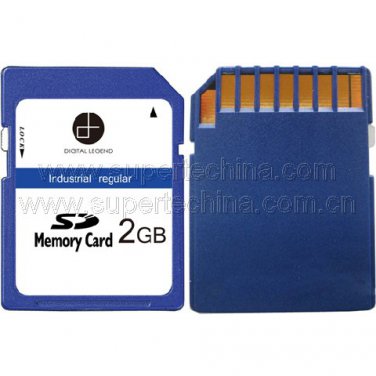

Industrial regular SD card/Industrial regular secure digital card
Specification:
SLC or MLC original flash chips
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Capacity: 32MB/64MB/128MB/256MB/512MB/1GB/2GB
Support CPRM(Content Protection for Recordable Media)
Support SD 1.1
Support Error Correcting Code (ECC) function to detect and correct errors.
Support in System Programming (ISP) function to load the firmware.
Supports power down commands and sleep modes
Low power consumption: automatic power down and automatic wake up, smart power management
Non-volatile storage and no battery required
Low weight
Noiseless
Low profile
Technique parameters:
Humidity: 8% to 95%, non-condensing
MTBF: >1, 000, 000 hours
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for communication: 2.0~3.6V
Voltage range for operating: 2.7~3.6V
Variable clock rate: 0~25MHz
Storage temperature: -40°C - 85°C
Operating temperature: -25°C - 85°C
Shock: 1, 000g/Max
Certificate:
CE
FCC
RoHS
WEEE
Quality warranty term:
5 years
